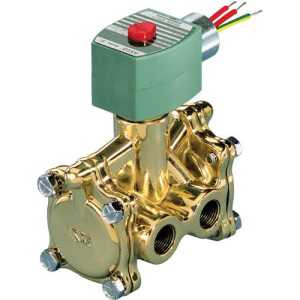

A shiny brass solenoid valve with multiple threaded ports, topped with a green actuator coil that has a red button and colored wires protruding.

8316G066 AC 120/60,110/50 D | ASCO | Control Valves

ASCO 8316G066 3-WAY N/O 1/2" SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:8316G066 AC 120/60,110/50 D

SKU:8316G066 AC 120/60,110/50 D

List Price:

$1,291.00

Today's Price:

$586.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Brass

Max Media Temperature

180 °F

Media Compatibility

Air-Inert Gas,Water-Clean Liquids

Power Supply

AC Line Power

Type

Three Way

Valve Operation

Normally Open

Orifice Size

5/8 in

Solenoid Coil

238210-032-D*

Solenoid Kit

314492

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

3.2 CV

Pipe Size

1/2 in

Wetted Materials

Brass, Buna N

Pressure Range

Air/Inert Gas: 10 - 150 PSI; Water: 10 - 125 PSI

Supply Voltage (Nominal)

120/60 VAC,110/50 VAC

Seal Material

Buna N Elastomer

product series specifications

Valve Function: General Service

Solenoid Valve Type: Three Way

Operation: Normally Open, Normally Closed

Body Material: Brass

Pipe Size: 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids

product series features

Available in 3/8" to 1" pipe sizes, normally closed or normally open operation
Diaphragm poppet brass body valve for controlling air, inert gas, and liquids with max fluid temperatures to 180°F
For operating pressure differential from 10 to 250 psi
Internal piloting controls large orifices to provide high flows
Can be used to pilot large actuators for quick closure of large control valves
Resilient seating for tight shutoff
CSA certified, meets all CE directives. Optional ATEX/IECEx approvals
Mountable in any position
Minimum operating pressure differential must be maintained between pressure and exhaust ports
Supply and exhaust piping must be full area, unrestricted
Flow controls and similar components must be installed in cylider lines only

more information & related documents

Series Description

Three-way pilot-operated diaphragm solenoid valves. 1/8" to 1/4" pipe size. Normally closed or normally open operation. Brass body. For high flow applications.

Kele Description

ASCO 8316G066 3-WAY N/O 1/2" SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
